David’s 1986 Corvette VATS No-Start Fix
A year is a long time for a car to sit.
Long enough for the battery to need replacing twice. Long enough that you stop walking past it in the garage. Long enough that people stop asking when it will be back on the road, which is somehow the worst part.
David’s 1986 Corvette had been out of action for twelve months, and not because anything was wrong with it. The engine was fine. The car was fine. The VATS system had decided otherwise.
“I don’t know if wires go to the tdm or ecm”
His first message to us was not a complaint. It was a man who had bought the part and simply could not find where it went:
“I have a 86 corvette and i bought the newrockies pro and it doesn’t have instructions where to connect the 4 wires from newrockies pro. I dont know if wires go to the tdm or ecm or any other plugs please help i appreciated.”

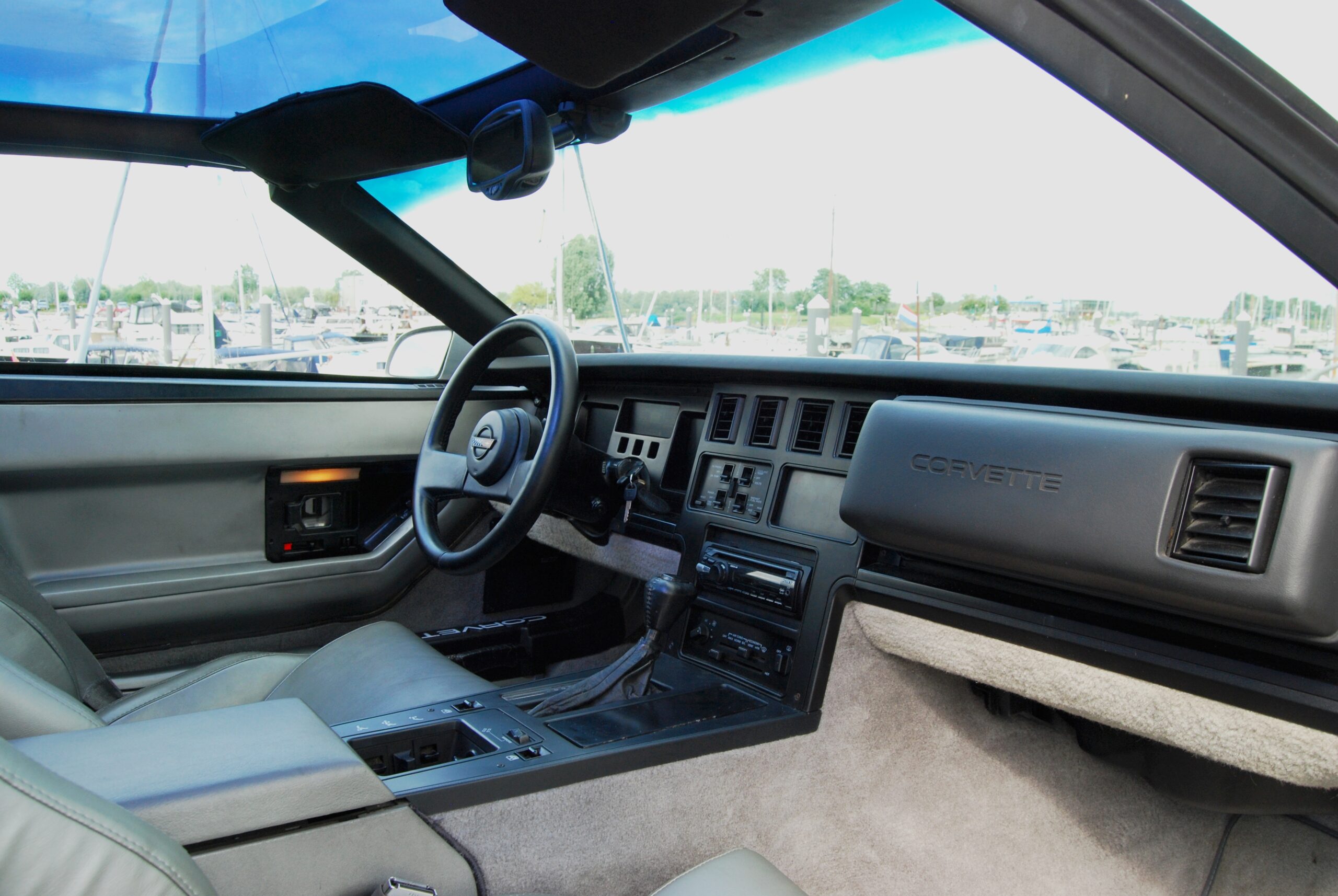

This is the honest part of the story. It took several days and a good many photographs. On a C4 the connectors sit up under the dash where you cannot comfortably see them, and there is more than one box up there that looks like it might be the theft module.
David kept going. He checked a spare connector from another C4 to compare pin positions. He photographed what he found and sent it over. And eventually he worked out for himself which plug was the right one:
“I found it and this is the plug that goes to pro module”
“My corvette it’s alive”
The next message came the following day.
“It was terrific!! My corvette it’s alive afer 1 year dealing with the vats system. You guys are awesome and thank you so much for your help. I really do appreciated!”
David R.
One year of a car sitting still, ended in an afternoon.
What was actually wrong
Nothing, in any mechanical sense. On a 1986 Corvette the Theft Deterrent Module reads a resistance value through the ignition key and compares it to the value it expects. If those two numbers disagree, it cuts the injectors. The engine cranks, it has spark, and it will not run.
The value drifts for entirely ordinary reasons on a car of this age: a worn pellet, an oxidised contact, a reader that has taken the measurement tens of thousands of times, a module quietly failing after four decades under a dashboard. The car is not broken. The burglar alarm is.
On the 1982 to 1989 Corvettes the fix is unusually clean. The TDM is unplugged and left unplugged, and the PRO Module takes over its job permanently. There is no pellet left to wear, no reader left to misread, and no module left to fail in another ten years.
Doing this on your own C4
The full wiring is in the 1986 to 1989 Chevrolet Corvette installation guide, including where the module hides and which connector you are looking for.
David’s difficulty is the common one, so learn from it: identify the right box before you cut anything. If what you are looking at does not match the guide, send a photo of the connector and we will read it with you rather than guess.
Wondering whether your car has VATS at all? Identify your system here, or read the rest of Corvette VATS Delete: The Cars That Came Back.
