2005 Chevrolet SSR

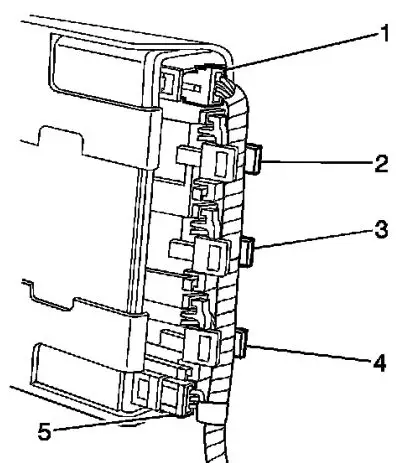

Locate the BCM There are 6 electrical connectors on the BCM (C1, C2, C3, C4, C5, C6) The connectors we need are C2 which is grey and C3 which is brown and C4 which is light blue. All 3 have the same configuration and are a 24 pin connector.
2004-2012 Isuzu I-280, I290, I-350, Chevrolet Colorado, GMC Canyon Pickup, 2006-2010 Hummer H3

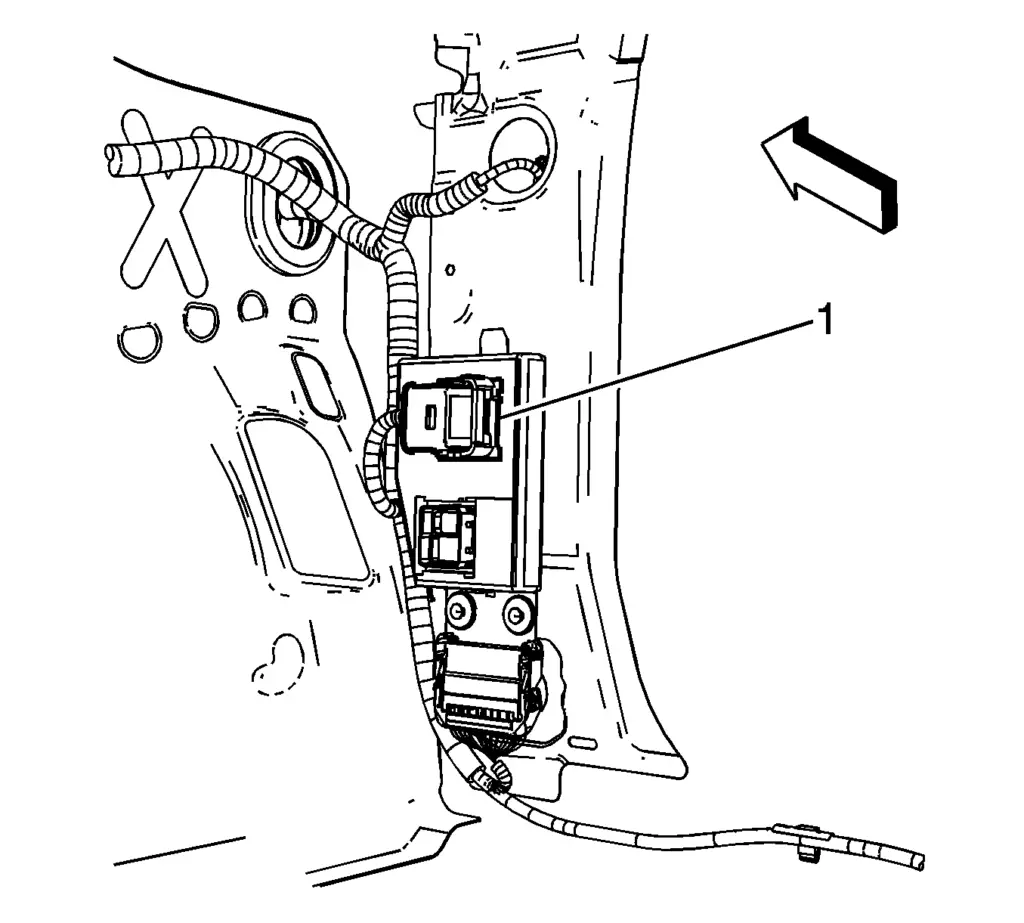

To locate the BCM, remove the trim panel in front of the passengers door next to the passengers right foot: Ensure the ignition switch is in the OFF position. Remove the right front hinge pillar trim panel We need connector C1 and C2 which are both 64 pin pugs – C1 is Black and C2 […]
2003-2007 Chevrolet Express, Savana

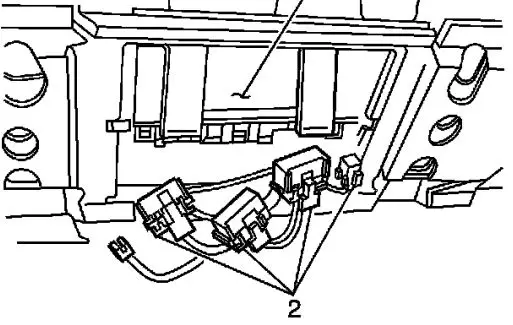

To locate the BCM remove the right knee bolster this is on the right bottom of the dash The Pro Bypass will connect to the BCM plugs There are 6 plugs on the body control module we need C2 – Grey, C3 Brown, C4 LT-Blue
2003-2006 Chevrolet Suburban, Tahoe, Avalanche, GMC Yukon & Sierra, Cadillac Escalade, 2003-2007 Silverado Classic

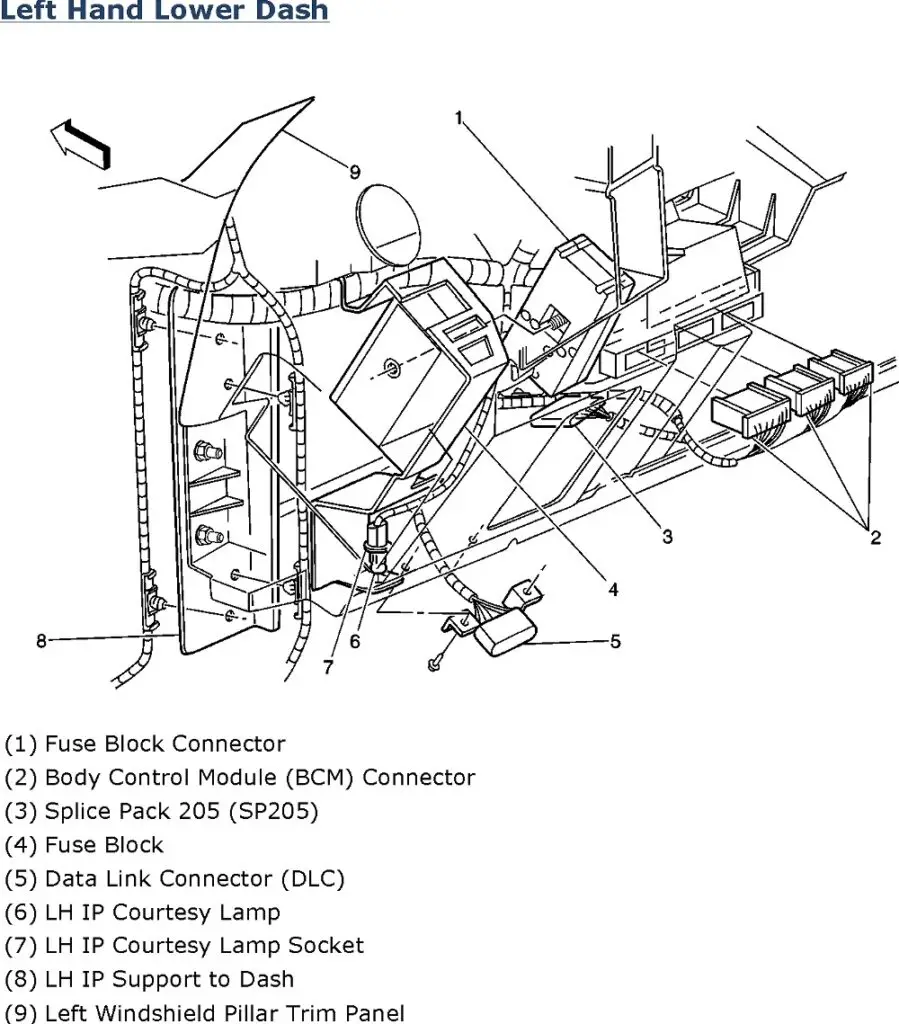

Locate the BCM The BCM is in the dash directly under the steering column. Remove the Trim panel. Then behind that is the BCM. Disconnect the Lt Blue connector first. There are 6 electrical connectors on the BCM (C1, C2, C3, C4, C5, C6) The connectors we need are C2 which is grey and C3 […]
2000-2005 Chevrolet Safari and Astro
Locate the BCM and install the PRO Bypass Module The BCM is behind and above the radio. Remove the radio and the heater control out to gain access to the Body Control Module. here are 3 electrical connectors on the BCM (C1, C2, C3). We will only need to work on C1 and C2. Safari […]
2000-2005 Chevrolet Impala, Monte Carlo
The BCM is under the dash, far left above the parking brake pedal. There are 3 electrical connectors on the BCM (C1 24 pin pink, C2 24 pin grey, C3 16 pin grey) This view is looking into the end that goes into the BODY CONTROL MODULE, so reverse it with the release tab on top. […]
2000-2005 Chevrolet Cavalier, Pontiac Sunfire
The Body Control Module (BCM) is under the left side of the dash. There are 3 connectors for the BCM. C1 is Purple, we don’t need this one. C2 is Light Blue, we need this one. C3 is Brown and we need this one as well.
1999-2002 Chevrolet Suburban, Silverado, Tahoe, GMC Yukon, Sierra (NEW STYLE)
Locate the BCM The BCM is in the dash directly under the steering column. Remove the Trim panel. Then behind that is the BCM. Disconnect the Brown connector first. There are 3 electrical connectors on the BCM (C1, C2, C3) The connectors we need are C1 which is brown and C2 which is Grey or […]
1998-2005 Chevrolet S10, Blazer, Isuzu Hombre, Oldsmobile Bravada, GMC Envoy, Sonoma, Jimmy
Locate the BCM and install the PRO Bypass Module The BCM is under the drivers side of the dash. Remove the screws from the DLC Plug. REmove the screws that hold the sound insulator. Remove the connectors from the module. Remove the left sound insulator. Remove the center console if equipped. Remove the screws that […]
1998-2002 GMC Savana, Chevrolet Express
Locate the TDM and install the PRO Bypass The TDM (or passlock control module) is in the dash behind the radio area and you can get at it above the fuel pedal. There is 1 electrical connectors on the TDM (or Passlock control module).
