Permanently Disable and Remove GM Security Systems

Facebook Instagram Youtube

2003-2007 Chevrolet Express, Savana

2003-2007 Chevrolet Express
2003-2007 Chevrolet Savana

IMPORTANT PLEASE READ CAREFULLY: – RISK OF AIR BAG DEPLOYMENT –

The installation of the PRO Module NEVER requires to work on AIR-BAG wires, but it might require to work close to them.
Before proceeding with these installation instructions, unplug the battery of your car and wait 20 minutes, with the battery unplugged, for any stored energy to be discharged.

Leave the battery disconnected during the entire installation until it’s all installed, ready to be tested. Even with the battery disconnected, always make sure the wires you are working on are the correct ones. Never work on AIR-BAG wires with a tester, voltmeter or light or any other instrument that has a battery.

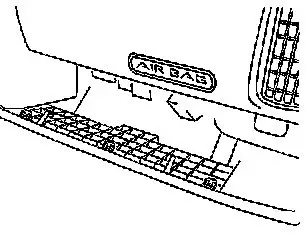

To locate the BCM remove the right knee bolster this is on the right bottom of the dash

2003-2007 Chevrolet Express, Savana BCM Location

The Pro Bypass will connect to the BCM plugs

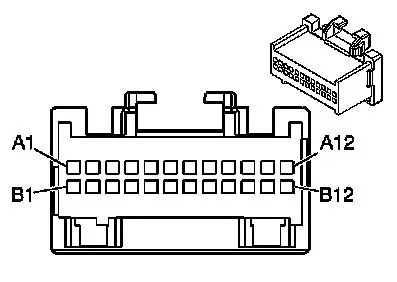

2003-2007 Chevrolet Express, Savana BCM Connectors

There are 6 plugs on the body control module we need

C2 – Grey, C3 Brown, C4 LT-Blue

2003-2007 Chevrolet Express, Savana BCM Connectors C2 - Grey, C3 Brown, C4 LT-Blue

If the enclosure of your NEWROCKIES PRO Module is green and blue, please setup the switches as following (if enclosure is black, please submit a request to our support team for correct switch configurations):

Open the NEWROCKIES PRO Module’s cover (this will NOT void the warranty) by removing the 2 screws on the bottom. Inside there are 2 sets of switches.

Set the switches as in the photo here below:

Passlock

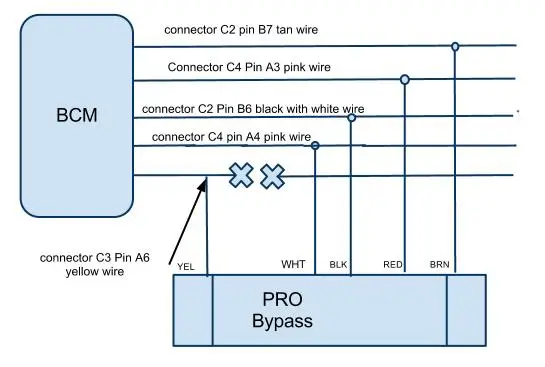

Connect as following:

PRO Module
CAR Wires
RED
Splice into PINK wire at the BCM Connector C4 Pin A3
WHT
Splice into the PINK wire at BCM connector C4 pin A4
BLK
Splice into BLACK with WHITE stripe wire at the BCM connector C2 Pin B6.
PPL
Not Used
GRN
Not Used
YEL
Cut YELLOW wire at the BCM connector C3 Pin A6 a couple inches from connector so you have room to connect the yellow wire to the wire coming from the connector
BRN
Splice into the TAN wire at BCM connector C2 pin B7
Reconnect the BCM

Relearn Procedure

  1. Turn the key on, with the engine OFF.
  2. Try to start the engine, then release the key to ON, Engine will not start.
  3. Watch the security telltale, after about 11 minutes, it will turn OFF.
  4. Turn OFF the ignition, and wait 10 seconds.
  5. Repeat steps 1 through 4 two more times for a total of 3 cycles/33 minutes. The vehicle is now ready to relearn The Passlock Sensor Data Code and/or Passwords on the next ignition switch transition from OFF to CRANK. You must turn the ignition OFF for 30 seconds before attempting to start the vehicle after the 3 cycles.
  6. Start the engine .

Troubleshooting

  1. If your installation instructions make use of the YEL wire of the PRO Module, then make sure you plugged back all factory units (BCM, EVO, etc.) after installing the PRO Module.
  2. Make sure connector’s pinout and wiring colors of your car are both matching exactly those of our instructions. If not, please Submit a Request to our support team with details of the pinout and wiring colors in your car.
  3. Is the light on the side of the PRO module turning on? If not check power between RED and BLK wires of the PRO module installed and with the key in the ON position (you can use a power-meter or a light) and Submit a Request to our support team with results of the measurement.​
  4. If (1), (2) and (3) are correct, is your vehicle cranking at all? Some systems are disabled due to the nature of the Passlock system and the specifics of the year. If your vehicle is not cranking, see if the starter relay (often in the under hood fuse block) clicks with the key turned to crank. You will need a second person to turn the key to crank while holding your finger on the starter relay.
  5. After you perform this test, or if you need our help to find the starter relay in your car, please Submit a Request to our technical support team detailing the tests you have done and the results.
  6. If the car is cranking, but engine doesn’t start or sometimes starts but immediately dies then do the following:
    1. Make sure the YELLOW wire of the PRO bypass is correctly connected and the connection is tight, and that you cut only the wire or wires indicated in the instructions, and on the proper side of the splice.
    2. Open the cover of the PRO Module and make sure the switches SW1 and SW2 are set exactly as indicated in the instructions for your car model/year, otherwise change them accordingly. Try starting the car.
  7. If during the relearn the battery went dead, or you turned the key off too soon, do the following.
    1. Take the battery cables off the battery, hold the ends together for 10 seconds then attach them to the battery.
    2. Try the relearn again with a charger or booster attached so the battery doesn’t run down. Be sure to cycle the key fully to start each time, then only release it to run and wait the time indicated.
    3. Also be sure the key was turned off for more than 30 seconds afterwards.

If car is still not starting or if you have any questions or concerns please Submit a Request to our technical support team detailing the tests you have done and the results.


NOTE: when contacting our support team, please always indicate your car’s make, model and year.

Is the GM Security System (VATS, Passkey or Passlock) giving you problems?

Would you like to solve the problem permanently...

You are in the right place!

NEWROCKIES is #1 in the world. It was born to solve GM VATS System problems once and for all and it’s the only thing we do. Our PRO Module is a FULL VATS Bypass that gets rid of the system entirely, the Key part, the Lock part and the TDM (which is the brain of the system).
