Locate the BCM and install the PRO Bypass Module
The BCM is under the drivers side of the dash.

Remove the screws from the DLC Plug.

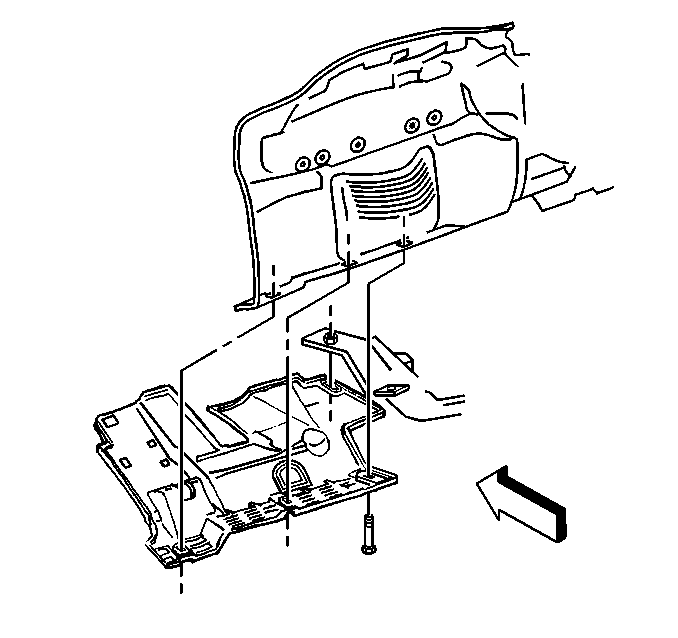

REmove the screws that hold the sound insulator.
Remove the connectors from the module.

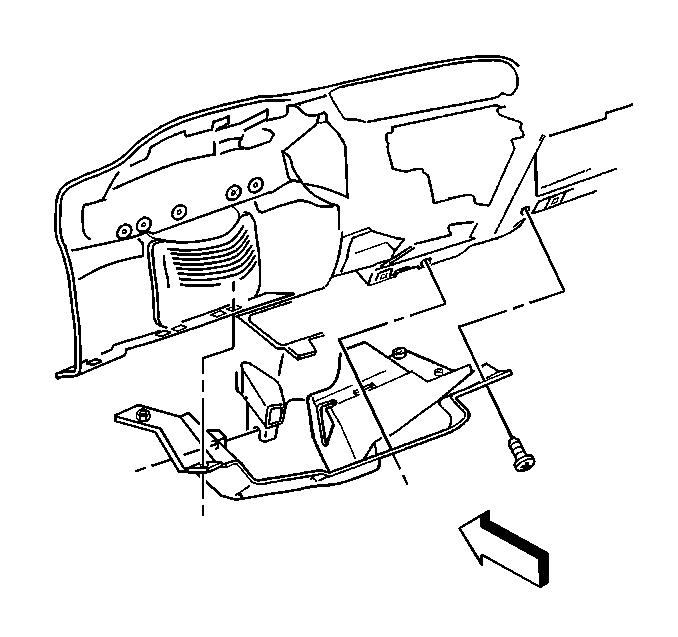

Remove the left sound insulator.

Remove the center console if equipped.
Remove the screws that hold the knee bolster, Instrument panel, heater assembly and floor duct.
Remove the lower sound insulator.

Disconnect the Brown BCM connector first then all the others, and then make the connections as indicated.

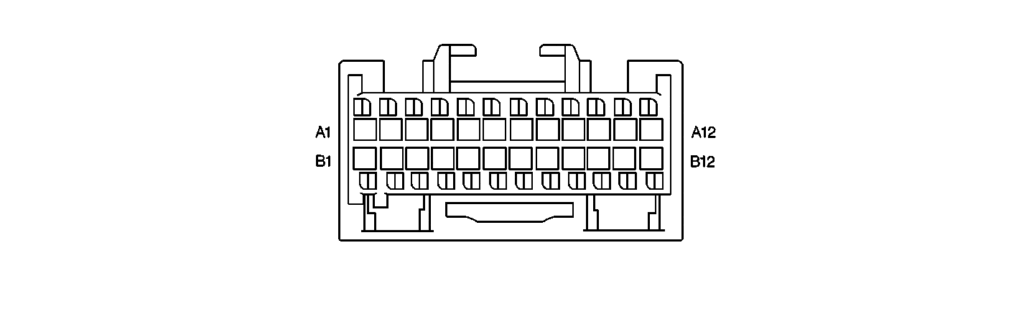

There are 3 electrical connectors on the BCM (C1, C2,and C3) We need C1 and C2. Both have the same shape but are a different colour. Connector C1 is brown and Connector C2 is light blue. They are both 24 pin connectors.
