1998-2002 GMC Savana, Chevrolet Express

1998-2002 GMC Savana
1998-2002 Chevrolet Express

Locate the TDM and install the PRO Bypass

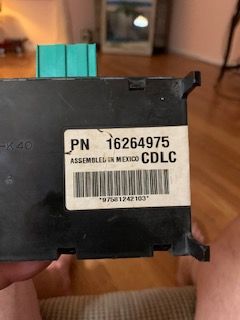

The TDM (or passlock control module) is in the dash behind the radio area and you can get at it above the fuel pedal.

1998-2002 GMC Savana, Chevrolet Express TDM (Passlock Control Module) Location
  1. Push the tab (3) at the rear of the Passlock™ control module in order to release the module from the Passlock™ control module bracket (4).
  2. Slide the Passlock™ control module (2) out of the Passlock™ control module bracket (4).
  3. Disconnect the electrical connector (5) from the Passlock™ control module (2).

There is 1 electrical connectors on the TDM (or Passlock control module).

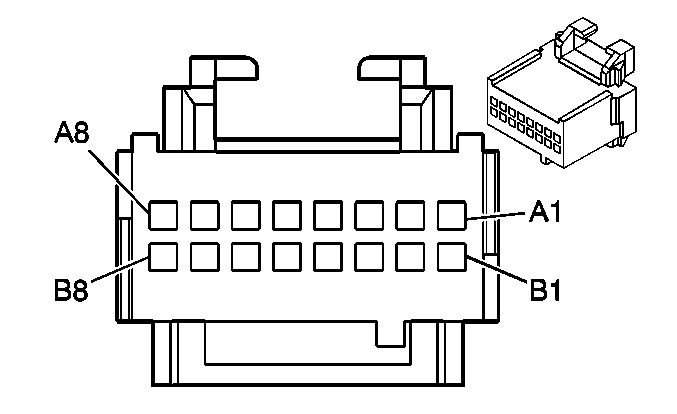

1998-2002 GMC Savana, Chevrolet Express TDM (Passlock Control Module) Connector

If the enclosure of your NEWROCKIES PRO Module is green and blue, please setup the switches as following (if enclosure is black, please submit a request to our support team for correct switch configurations):

Open the NEWROCKIES PRO Module’s cover (this will NOT void the warranty) by removing the 2 screws on the bottom. Inside there are 2 sets of switches.

Set the switches as in the photo here below:

Passlock

Connect as following:

PRO Module
CAR Wires
RED
Splice together with WHT to Pink wire in TDM Connector Pin B3.
WHT
Splice together with RED to Pink wire in TDM Connector Pin B3.
BLK
Splice into Black/White wire in Pin B1.
PPL
Not Used
GRN
Not Used
YEL
Cut the yellow wire in Pin B7 and attach the YEL wire of the Pro module to it towards the TDM. Tape the other side.
BRN
Splice into the orange/black wire in Pin B5
Important: Make sure the TDM is plugged back in and the 1 wires are taped to the harness out of the way.

Relearn Procedure

1. Turn ON the ignition, with the engine OFF.
2. Attempt to start the engine, then release the key to ON (vehicle will not start).
3. Observe the SECURITY light, after approximately 11 minutes the light will turn OFF.
4. Turn OFF the ignition, and wait 10 seconds.

Repeat steps 1 through 4 two more times for a total of 3 cycles/30 minutes ( the vehicle is now ready to relearn the Sensor Data Code and/or passwords on the next ignition switch transition from OFF to CRANK).

Important: The vehicle relearns Sensor Data Code and/or password on the next ignition switch transition from OFF to CRANK. You must turn the ignition OFF before attempting to start the vehicle.

Start the engine (the vehicle has now learned the Sensor Data Code and/or password).

If the engine runs but the security light remains on after this, cut the Yellow wire in TDM location B2 and tape the ends to the side.

Troubleshooting

  1. Make sure connector’s pinout and wiring colors of your car are both matching exactly those of our instructions. If not, please Submit a Request to our support team with details of the pinout and wiring colors in your car.
  2. Is the light on the side of the PRO module turning on? If not check power between RED and BLK wires of the PRO module installed and with the key in the ON position (you can use a power-meter or a light) and Submit a Request to our support team with results of the measurement.​
  3. If (1) and (2) are correct, is your vehicle cranking at all? Some systems are disabled due to the nature of the Passlock system and the specifics of the year. If your vehicle is not cranking, see if the starter relay (often in the under hood fuse block) clicks with the key turned to crank. You will need a second person to turn the key to crank while holding your finger on the starter relay.
  4. After you perform this test, or if you need our help to find the starter relay in your car, please Submit a Request to our technical support team detailing the tests you have done and the results.
  5. If the car is cranking, but engine doesn’t start or sometimes starts but immediately dies then do the following:
    1. Make sure the YELLOW wire of the PRO bypass is correctly connected and the connection is tight, and that you cut only the wire or wires indicated in the instructions, and on the proper side of the splice.
    2. Open the cover of the PRO Module and make sure the switches SW1 and SW2 are set exactly as indicated in the instructions for your car model/year, otherwise change them accordingly. Try starting the car.
  6. If during the relearn the battery went dead, or you turned the key off too soon, do the following.
    1. Take the battery cables off the battery, hold the ends together for 10 seconds then attach them to the battery.
    2. Try the relearn again with a charger or booster attached so the battery doesn’t run down. Be sure to cycle the key fully to start each time, then only release it to run and wait the time indicated.
    3. Also be sure the key was turned off for more than 30 seconds afterwards.

If car is still not starting or if you have any questions or concerns please Submit a Request to our technical support team detailing the tests you have done and the results.


NOTE: when contacting our support team, please always indicate your car’s make, model and year.
