1996-1999 Saturn S Series

1996-1999 Saturn S Series

IMPORTANT PLEASE READ CAREFULLY: – RISK OF AIR BAG DEPLOYMENT –

The installation of the PRO Module NEVER requires to work on AIR-BAG wires, but it might require to work close to them.
Before proceeding with these installation instructions, unplug the battery of your car and wait 20 minutes, with the battery unplugged, for any stored energy to be discharged.

Leave the battery disconnected during the entire installation until it’s all installed, ready to be tested. Even with the battery disconnected, always make sure the wires you are working on are the correct ones. Never work on AIR-BAG wires with a tester, voltmeter or light or any other instrument that has a battery.

To install the pro bypass module we will need to access the RKE module behind the right rear side seat attached to the in-structure

1.1.Disengage seat cushion by pushing rearward, then upward at 2 front retaining locations to release the rear cushion from the retainer.
1.2.Slide the cushion from under the seat back guiding the seat belt buckle through the seat cushion and remove the seat cushion.

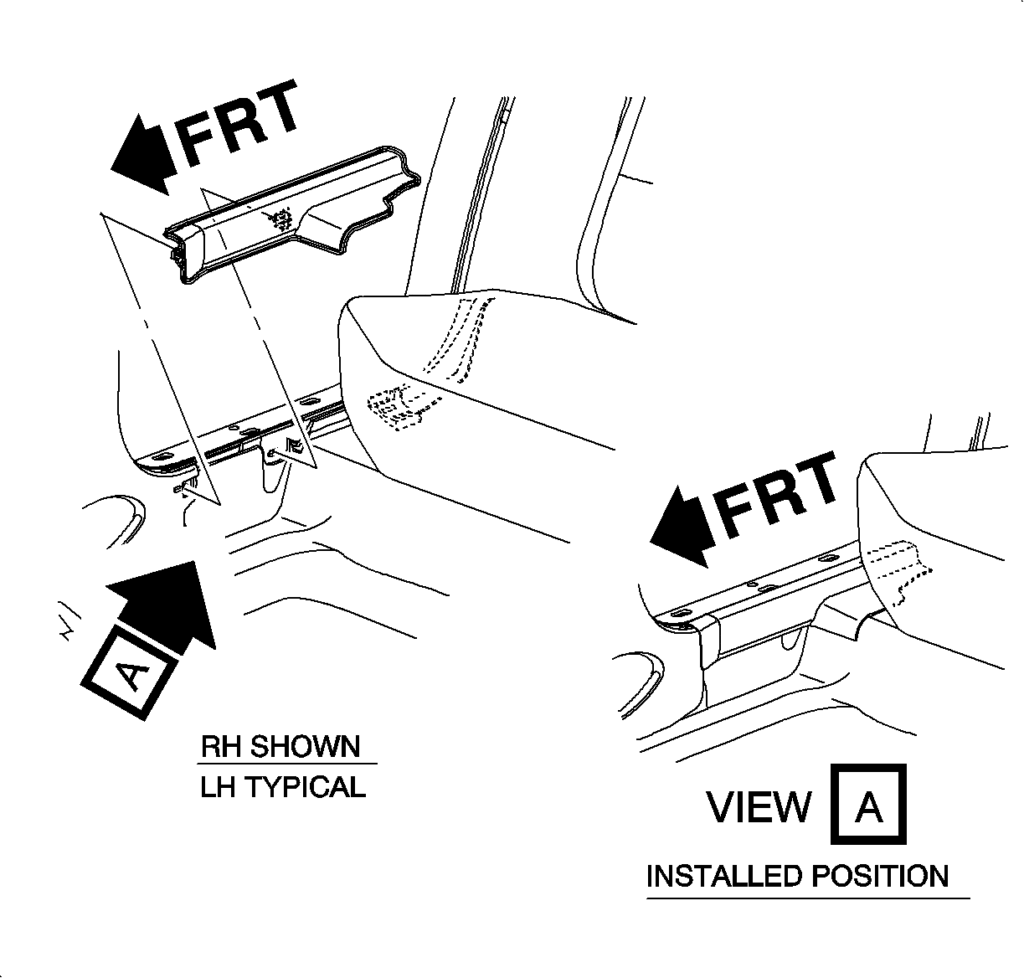

1996-1999 Saturn S Series RKE Module Location - Step 1

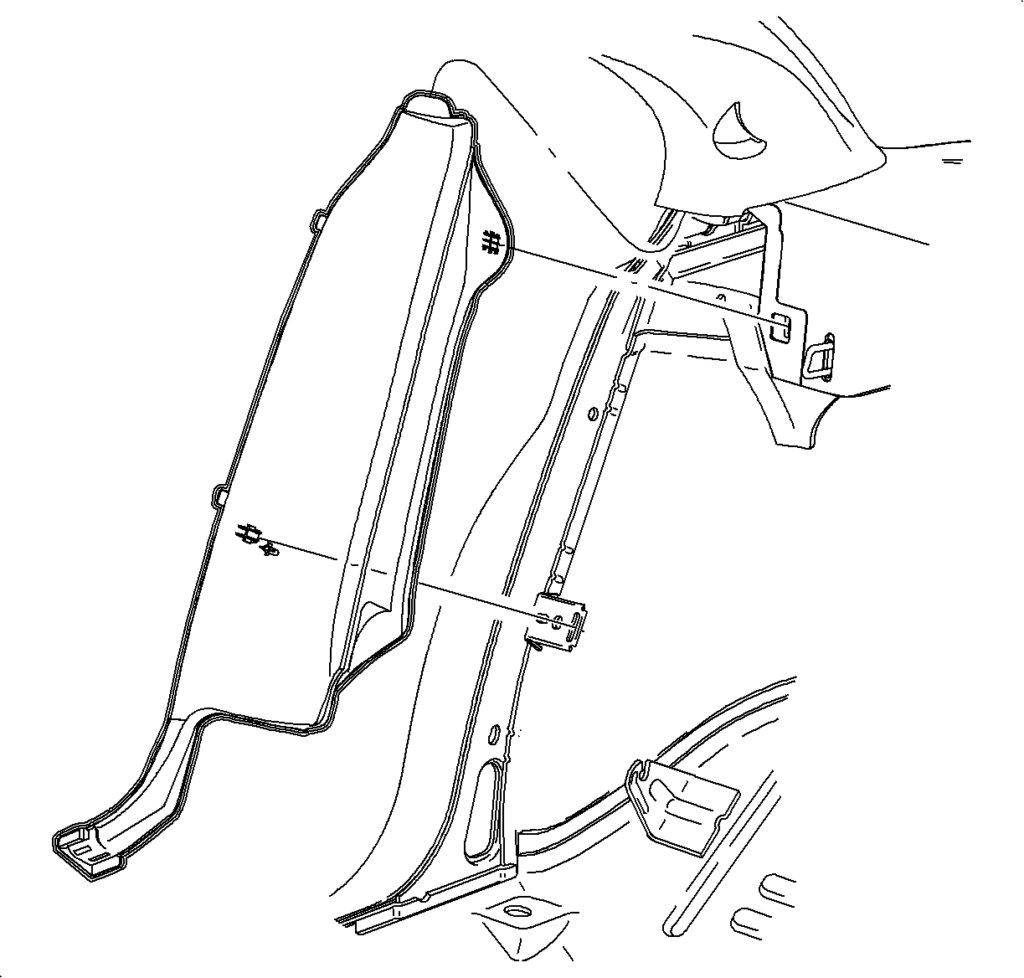

1996-1999 Saturn S Series RKE Module Location - Step 2
1.4.Lower rear seat back.
1.5.Remove body lock trim finish molding by pulling firmly, starting at the bottom of the molding to disengage clips.
1.6.Slide molding out from under body lock pillar upper trim finish molding.
1996-1999 Saturn S Series RKE Module Location - Step 3
  1. Disconnect RKE module connector.
  2. Pull firmly on RKE module from the top to bottom, to disengage double side tape retainer.
  3. Remove RKE module.
1996-1999 Saturn S Series RKE Module Connector

If the enclosure of your NEWROCKIES PRO Module is green and blue, please setup the switches as following (if enclosure is black, please submit a request to our support team for correct switch configurations):

Open the NEWROCKIES PRO Module’s cover (this will NOT void the warranty) by removing the 2 screws on the bottom. Inside there are 2 sets of switches.

Set the switches as in the photo here below:

PassKEY 2

Connect as following:

PRO Module
CAR Wires
RED
Splice into the RKE connector Terminal J, Pink wire
WHT
Not Used
BLK
Splice into the RKE connector Terminal N Black wire
PPL
Cut the wire on Terminal D Yel/Blk wire and connect the PPL wire of the PRO bypass to it toward the harness going away from the RKE module plug
GRN
Not Used
YEL
Not Used
BRN
Not Used
NOTE: Plug the RKE module back to it’s connector.

Troubleshooting

  1. Make sure connector’s pinout and wiring colors of your car are both matching exactly those of our instructions. If not, please Submit a Request to our support team with details of the pinout and wiring colors in your car.
  2. Is the light on the side of the PRO module turning on? If not check power between RED and BLK wires of the PRO module installed and with the key in the ON position (you can use a power-meter or a light) and Submit a Request to our support team with results of the measurement.​
  3. If your instructions do NOT make use of the PPL wire of the PRO Module then skip this step, otherwise, if you use the PPL wire and points (1) and (2) above are correct and your car is not even cranking then make sure the PPL wire of the PRO bypass is connected correctly and the connection is tight. Also try shorting with a loose piece of wire the PPL and BLK of the PRO module.
  4. If car is still not cranking then Submit a Request to our technical support team detailing the tests you have done and the results.
  5. If the car is cranking, but engine doesn’t start or sometimes starts but immediately dies then do the following:
    1. If your instructions make use of the GRN wire of the PRO Module, then make sure the GRN wire of the PRO bypass is correctly connected and the connection is tight.
    2. Open the PRO module’s cover by removing the 2 screws on the bottom and change switches 7 and 8 of SW1 to [7:ON, 8:OFF] or to [7:OFF, 8:ON]. Make sure the switches 1-6 of SW1 are exactly as indicated in the instructions for your car model/year and if not, then change them accordingly. Try starting the car.​

If car is still not starting or if you have any questions or concerns please Submit a Request to our technical support team detailing the tests you have done and the results.


NOTE: when contacting our support team, please always indicate your car’s make, model and year.
