1994-1996 Chevrolet Caprice, Impala, Buick Roadmaster

1994-1996 Chevrolet Caprice
1994-1996 Chevrolet Impala
1994-1996 Buick Roadmaster

IMPORTANT PLEASE READ CAREFULLY: - RISK OF AIR BAG DEPLOYMENT -

The installation of the PRO Module NEVER requires to work on AIR-BAG wires, but it might require to work close to them.
Before proceeding with these installation instructions, unplug the battery of your car and wait 20 minutes, with the battery unplugged, for any stored energy to be discharged.

Leave the battery disconnected during the entire installation until it's all installed, ready to be tested. Even with the battery disconnected, always make sure the wires you are working on are the correct ones. Never work on AIR-BAG wires with a tester, voltmeter or light or any other instrument that has a battery.

Read a real story for these vehicles →

Option 1: Installation at TDM

The TDM (Theft Deterrent Module) is above and left of the brake pedal under the dash

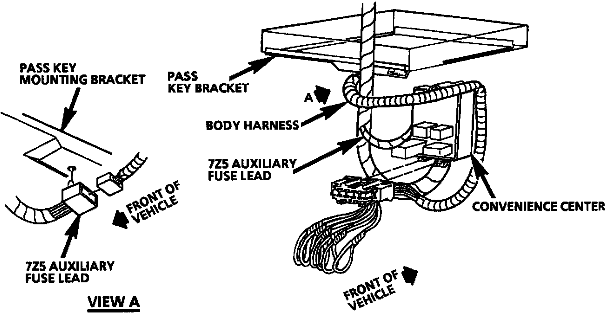

1994-1996 Chevolet Caprice, Impala, Buick Roadmaster TDM Location
1994-1996 Chevolet Caprice, Impala, Buick Roadmaster TDM Location

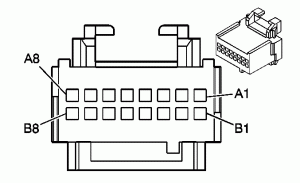

1994-1996 Chevolet Caprice, Impala, Buick Roadmaster TDM Connector
                           TDM Connector
PassKEY 2

Set the PRO Module switches as in the photo here above

  1. Open the NEWROCKIES PRO Module's cover (this will NOT void the warranty) by removing the 2 screws on the bottom.
  2. Locate the 2 sets of switches.
  3. Change the switches configurations on both banks to match those of the photo.
  4. Close the enclosure tightening with the 2 screws.

NOTE: If the enclosure of your NEWROCKIES PRO Module is NOT green and blue, please contact us to request the correct configuration.

Connect as following:

PRO Module
CAR Wires
RED
(splice together with WHT wire at TDM) Attach to the Pink in pin A2
WHT
(splice together with RED wire at TDM) Attach to the Pink in pin A2
BLK
Attach to the Black with a White stripe in pin B5
PPL
Attach to the Yellow with a black stripe in pin A4
GRN
Attach to the Blue wire in A3
YEL
Not Used
BRN
Not Used

NOTE: After installing the NEWROCKIES PRO Module, leave the TDM unplugged as it is not needed anymore









Option 2: Installation directly at PCM / ECM

This is to use in case your car is a project car and no TDM is installed.

Set the switches exactly as indicated in Option1 for TDM installation, then proceed as following:

The PCM / ECM is located under the hood, passenger side, at the front, under the air cleaner:

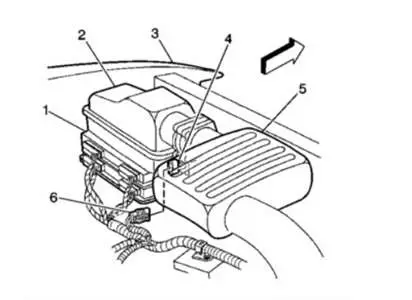

1994-1996 Chevolet Caprice, Buick Roadmaster PCM ECM Location

PRO Bypass

Car Wires

RED

Splice to PCM Black connector B pin 30 PINK

BLK

Splice to PCM Red connector A Pin 2, Black with a White stripe.

GRN

Cut the Dark Blue wire at PCM Red connector A, Pin 25 at least a couple inches far from the connector. Connect the GRN of the NEWROCKIES PRO Module to it, on the side toward the PCM. Tape the other side.

Leave all other wires of the PRO Module unconnected as they are not used in this installation.

Plug the ECM back in after installation.

Troubleshooting

  1. Make sure connector’s pinout and wiring colors of your car are both matching exactly those of our instructions. If not, please Submit a Request to our support team with details of the pinout and wiring colors in your car.
  2. Is the light on the side of the PRO module turning on? If not check power between RED and BLK wires of the PRO module installed and with the key in the ON position (you can use a power-meter or a light) and Submit a Request to our support team with results of the measurement.​
  3. If your instructions do NOT make use of the PPL wire of the PRO Module then skip this step, otherwise, if you use the PPL wire and points (1) and (2) above are correct and your car is not even cranking then make sure the PPL wire of the PRO bypass is connected correctly and the connection is tight. Also try shorting with a loose piece of wire the PPL and BLK of the PRO module.
  4. If car is still not cranking then Submit a Request to our technical support team detailing the tests you have done and the results.
  5. If the car is cranking, but engine doesn’t start or sometimes starts but immediately dies then do the following:
    1. If your instructions make use of the GRN wire of the PRO Module, then make sure the GRN wire of the PRO bypass is correctly connected and the connection is tight.
    2. Open the PRO module’s cover by removing the 2 screws on the bottom and change switches 7 and 8 of SW1 to [7:ON, 8:OFF] or to [7:OFF, 8:ON]. Make sure the switches 1-6 of SW1 are exactly as indicated in the instructions for your car model/year and if not, then change them accordingly. Try starting the car.​

If car is still not starting or if you have any questions or concerns please Submit a Request to our technical support team detailing the tests you have done and the results.


NOTE: when contacting our support team, please always indicate your car’s make, model and year.
