2010-2017 Chevrolet Equinox, GMC Terrain
The factory security functions are managed by the Body Control Module (BCM) where we need to make the connections. The BCM is located under the drivers dash. You will need plug c3 and c4 Plug C3 Light Green Plug C4 is Black
2008-2011 Chevrolet Express, GMC Savana
To locate the BCM remove the right knee bolster this is on the right bottom of the dash The Pro Bypass will connect to the BCM plugs There are 6 plugs on the body control module we need C1 and C3 Connector C1 (27 pins) looks like this: While Connector C3 (25 pins) looks like […]
2007-2012 Chevrolet Silverado, GMC Sierra, Avalanche, Tahoe,Yukon, Suburban, Cadillac Escalade
Locate the BCM as follows The BODY CONTROL MODULE is under the dash left side above the parking brake pedal area. To get to it, remove the 10mm bolt that holds the parking brake release lever to the trim. Remove the 2 philips screws from the bottom. Remove the left dash fuse block cover. Ensure […]
2007-2010 Pontiac Torrent, Saturn Outlook, 2007-2009 Chevrolet Equinox, 2008-2009 Saturn Vue, 2007-2016 GMC Acadia, 2008-2017 Buick Enclave, 2009-2017 Chevrolet Traverse
The factory security functions are managed by the Body Control Module (BCM) where we need to make the connections. The BCM is located behind the radio. Starting at the bottom, pull to disengage the trim bezel clips. Disconnect the electrical connectors from the center trim bezel Remove the Radio. We need connector C1 Light green 27 […]
2005 – 2006 Hummer H2

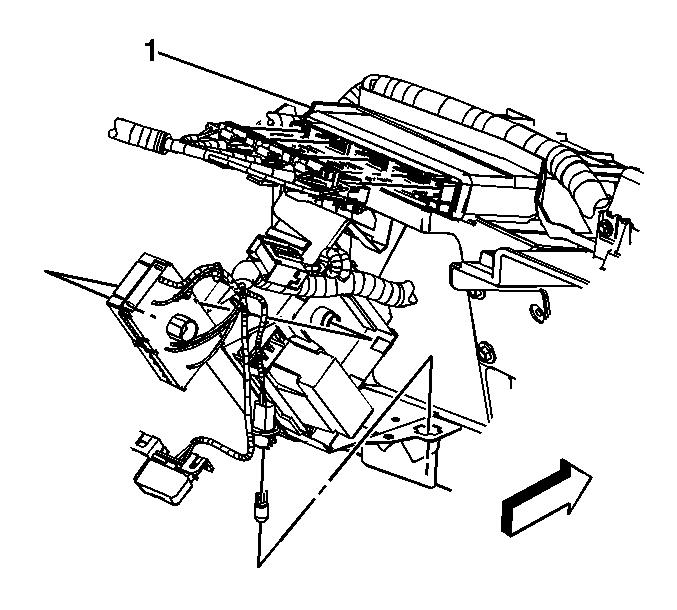

Locate the BCM and install the PRO Bypass Module The BCM is under the cluster and above the steering column. The knee bolster must come off, much of the trim on the dash and the cluster must come out to get at this to install the module. There are 6 electrical connectors on the BCM […]
2004-2012 Isuzu I-280, I290, I-350, Chevrolet Colorado, GMC Canyon Pickup, 2006-2010 Hummer H3
To locate the BCM, remove the trim panel in front of the passengers door next to the passengers right foot: Ensure the ignition switch is in the OFF position. Remove the right front hinge pillar trim panel We need connector C1 and C2 which are both 64 pin pugs – C1 is Black and C2 […]
2003-2006 Chevrolet Suburban, Tahoe, Avalanche, GMC Yukon & Sierra, Cadillac Escalade, 2003-2007 Silverado Classic
Locate the BCM The BCM is in the dash directly under the steering column. Remove the Trim panel. Then behind that is the BCM. Disconnect the Lt Blue connector first. There are 6 electrical connectors on the BCM (C1, C2, C3, C4, C5, C6) The connectors we need are C2 which is grey and C3 […]
2003 Hummer H2
Locate the BCM and install the PRO Bypass Module The BCM is under the cluster and above the steering column. The knee bolster must come off, much of the trim on the dash and the cluster must come out to get at this to install the module. There are 6 electrical connectors on the BCM […]
1999-2002 Chevrolet Suburban, Silverado, Tahoe, GMC Yukon, Sierra (NEW STYLE)
Locate the BCM The BCM is in the dash directly under the steering column. Remove the Trim panel. Then behind that is the BCM. Disconnect the Brown connector first. There are 3 electrical connectors on the BCM (C1, C2, C3) The connectors we need are C1 which is brown and C2 which is Grey or […]
1998-2005 Chevrolet S10, Blazer, Isuzu Hombre, Oldsmobile Bravada, GMC Envoy, Sonoma, Jimmy
Locate the BCM and install the PRO Bypass Module The BCM is under the drivers side of the dash. Remove the screws from the DLC Plug. REmove the screws that hold the sound insulator. Remove the connectors from the module. Remove the left sound insulator. Remove the center console if equipped. Remove the screws that […]
