2000-2005 Buick Century, Regal

2000-2005 Buick Century
2000-2005 Buick Regal

IMPORTANT PLEASE READ CAREFULLY: – RISK OF AIR BAG DEPLOYMENT –

The installation of the PRO Module NEVER requires to work on AIR-BAG wires, but it might require to work close to them.
Before proceeding with these installation instructions, unplug the battery of your car and wait 20 minutes, with the battery unplugged, for any stored energy to be discharged.

Leave the battery disconnected during the entire installation until it’s all installed, ready to be tested. Even with the battery disconnected, always make sure the wires you are working on are the correct ones. Never work on AIR-BAG wires with a tester, voltmeter or light or any other instrument that has a battery.

Locate the BCM and install the PRO Bypass

The BCM is under the left side of the dash. Remove the 3 push pin retainers and slide the hush panel out of the way. Unplug the 2 BCM connectors.

2000-2005 Buick Century, Regal BCM Location

There are 4 electrical connectors on the BCM (C1, C2, C3and C4)

We need 2 wires on C1 and 2 wires on C2.

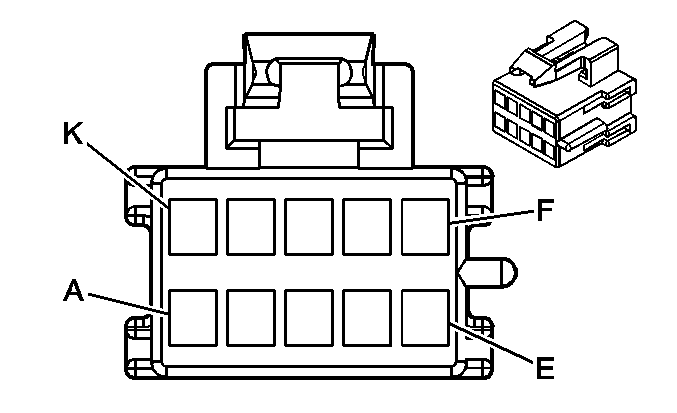

C1 , Blue.

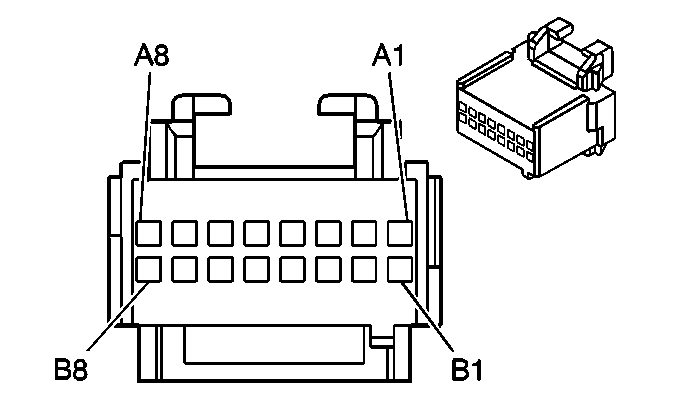

and C2, Purple.

2000-2005 Buick Century, Regal BCM Connector C2 Purple

If the enclosure of your NEWROCKIES PRO Module is green and blue, please setup the switches as following (if enclosure is black, please submit a request to our support team for correct switch configurations):

Open the NEWROCKIES PRO Module’s cover (this will NOT void the warranty) by removing the 2 screws on the bottom. Inside there are 2 sets of switches.

Set the switches as in the photo here below:

Connect as following:

PRO Module

CAR Wires

RED

Attach together with WHT of the PRO Module into Connector C1, pin J, PNK

WHT

Attach together with RED of the PRO Module into Connector C1, pin J, PNK

BLK

Attach as a 3 wire splice into Connector C1, pin K, BLK/WHT

PPL

Not Used

GRN

Not Used

YEL

Cut the wire in Connector C2, Pin B3, WHT/BLK and attach this Yellow wire of the bypass to it going towards the BCM

BRN

Attach as a 3 wire splice into Connector C2, Pin B4 PPL/WHT

Reconnect the BCM after installation

If your car is still not starting...

Set SW2 (10 switches) as indicated in the second row of the table below.
Try to start the engine. If engine starts then replace the cover on the PRO Module, the installation is completed. Otherwise if the engine still doesn’t start, turn off the key and remove it from the tumbler, wait 4 minutes and then continue with step #3 here below.
Repeat step #2 above, but with SW2 as in row 3 of the table, then if still doesn’t start repeat again with SW2 as in row 4 of the table and so on until the right code is found and the engine will start.

1992-1996 Chevrolet Corvette NEWROCKIES VATS Bypass Switches

Troubleshooting

In case your car is still not starting after installation of the PRO Full Bypass module, please check the following and perform the recommended actions before contacting our support team:

If your installation instructions make use of the YEL wire of the PRO Module, then make sure you plugged back all factory units (BCM, EVO, etc.) after installing the PRO Module.
Make sure connector’s pinout and wiring colors of your car are both matching exactly those of our instructions. If not, please Submit a Request to our support team with details of the pinout and wiring colors in your car.
Is the light on the side of the PRO module turning on? If not, check power between RED and BLK wires of the PRO module installed and with the key in the ON position (you can use a power-meter or a light) and Submit a Request to our support team with results of the measurement.
If your instructions do NOT make use of the PPL wire of the PRO Module then skip this step, otherwise, if you use the PPL wire and points (1), (2) and (3) above are correct and your car is not even cranking then make sure the PPL wire of the PRO bypass is connected correctly and the connection is tight. Also try shorting with a loose piece of wire the PPL and BLK of the PRO module and see if it still doesn’t crank.
If car is still not cranking then Submit a Request to our technical support team detailing the tests you have done and the results.
If the car is cranking, but engine doesn’t start or sometimes starts but immediately dies then do the following:
1. If your instructions make use of the GRN wire of the PRO Module, then make sure the GRN wire of the PRO bypass is correctly connected and the connection is tight.
2. The switches inside the PRO Module are set exactly as per instructions for your car model/year.

If car is still not starting or if you have any questions or concerns please Submit a Request to our technical support team detailing the tests you have done and the results.

NOTE: when contacting our support team, please always indicate your car’s make, model and year.
