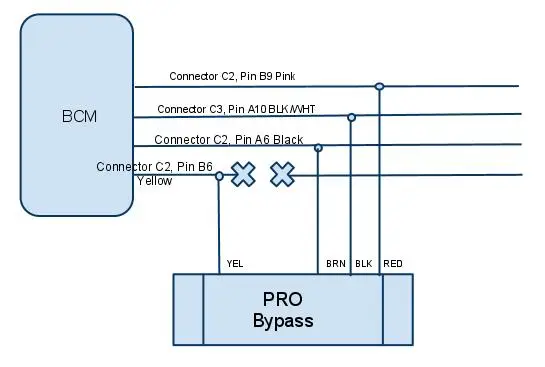

How to reach the BCM and install the NEWROCKIES Passlock Bypass
Location of the BCM is under the right side of the dash by the blower motor.
You will need to remove the black panel above the passengers feet to be able to see the BCM

There are 3 electrical connectors on the BCM (C1, C2 and C3)

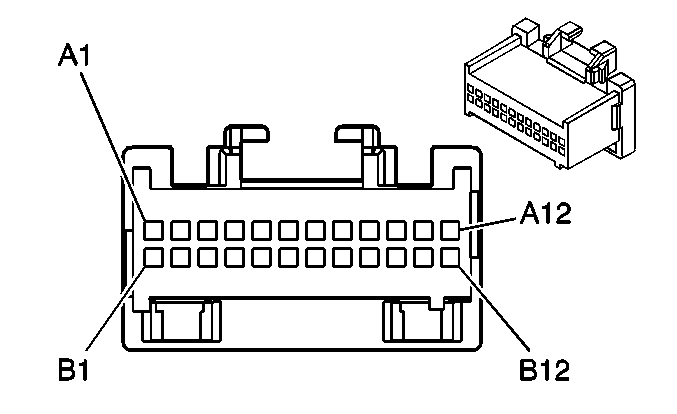

Connector C2 is the Grey 24 pin connector.

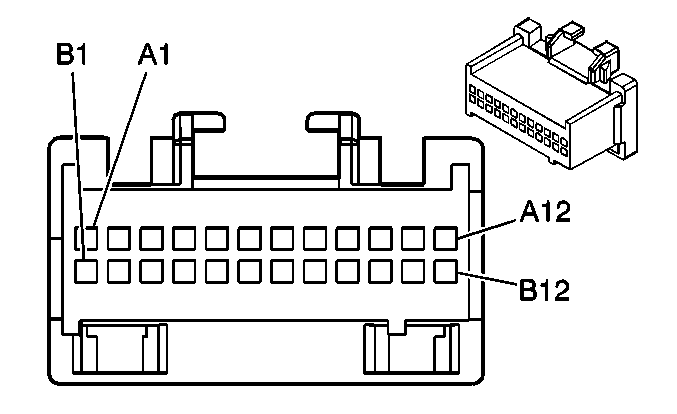

C3, the Pink one.
