1994-1995 Cadillac Seville, Deville, STS, SLS

1994-1995 Cadillac Seville
1994-1995 Cadillac Deville
1994-1995 Cadillac STS
1994-1995 Cadillac SLS

IMPORTANT PLEASE READ CAREFULLY: – RISK OF AIR BAG DEPLOYMENT –

The installation of the PRO Module NEVER requires to work on AIR-BAG wires, but it might require to work close to them.
Before proceeding with these installation instructions, unplug the battery of your car and wait 20 minutes, with the battery unplugged, for any stored energy to be discharged.

Leave the battery disconnected during the entire installation until it’s all installed, ready to be tested. Even with the battery disconnected, always make sure the wires you are working on are the correct ones. Never work on AIR-BAG wires with a tester, voltmeter or light or any other instrument that has a battery.

How to reach the Passkey Decoder module and install the VATS Passkey Bypass

The Passkey Decoder module is in the trunk.

1994-1995 Cadillac Seville Deville STS SLS PDM Location

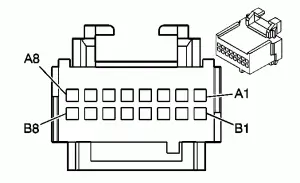

The Passkey decoder module Connector is as following:

1994-1995 Cadillac Seville Deville STS SLS PDM Connector

If the enclosure of your NEWROCKIES PRO Module is green and blue, please setup the switches as following (if enclosure is black, please submit a request to our support team for correct switch configurations):

Open the NEWROCKIES PRO Module’s cover (this will NOT void the warranty) by removing the 2 screws on the bottom. Inside there are 2 sets of switches.

Set the switches as in the photo here below:

PassKEY 2

Connect as following:

PRO Module
CAR Wires
RED
Attach to the PINK or PPL/WHT at the PDM Connector Pin A2
WHT
Not Used
BLK
Attach to the BLACK with a WHITE stripe at the PDM connector Pin B5
PPL
Attach to the (YEL/BLK or BLK/YEL) at the PDM connector Pin A4
GRN
Attach to the DARK BLUE wire at the TDM connector Pin A3
YEL
Not Used
BRN
Not Used
NOTE: After installing the NEWROCKIES PRO Module, leave the TDM unplugged as it is not needed anymore

Troubleshooting

  1. Make sure connector’s pinout and wiring colors of your car are both matching exactly those of our instructions. If not, please Submit a Request to our support team with details of the pinout and wiring colors in your car.
  2. Is the light on the side of the PRO module turning on? If not check power between RED and BLK wires of the PRO module installed and with the key in the ON position (you can use a power-meter or a light) and Submit a Request to our support team with results of the measurement.​
  3. If your instructions do NOT make use of the PPL wire of the PRO Module then skip this step, otherwise, if you use the PPL wire and points (1) and (2) above are correct and your car is not even cranking then make sure the PPL wire of the PRO bypass is connected correctly and the connection is tight. Also try shorting with a loose piece of wire the PPL and BLK of the PRO module.
  4. If car is still not cranking then Submit a Request to our technical support team detailing the tests you have done and the results.
  5. If the car is cranking, but engine doesn’t start or sometimes starts but immediately dies then do the following:
    1. If your instructions make use of the GRN wire of the PRO Module, then make sure the GRN wire of the PRO bypass is correctly connected and the connection is tight.
    2. Open the PRO module’s cover by removing the 2 screws on the bottom and change switches 7 and 8 of SW1 to [7:ON, 8:OFF] or to [7:OFF, 8:ON]. Make sure the switches 1-6 of SW1 are exactly as indicated in the instructions for your car model/year and if not, then change them accordingly. Try starting the car.​

If car is still not starting or if you have any questions or concerns please Submit a Request to our technical support team detailing the tests you have done and the results.


NOTE: when contacting our support team, please always indicate your car’s make, model and year.
