1993 Cadillac Fleetwood 60 Special

1993 Cadillac 60 Special

IMPORTANT PLEASE READ CAREFULLY: – RISK OF AIR BAG DEPLOYMENT –

The installation of the PRO Module NEVER requires to work on AIR-BAG wires, but it might require to work close to them.
Before proceeding with these installation instructions, unplug the battery of your car and wait 20 minutes, with the battery unplugged, for any stored energy to be discharged.

Leave the battery disconnected during the entire installation until it’s all installed, ready to be tested. Even with the battery disconnected, always make sure the wires you are working on are the correct ones. Never work on AIR-BAG wires with a tester, voltmeter or light or any other instrument that has a battery.

NOTE: For 1990-1992 The module you work on is called PDM, for 1993 it is called TDM, but the location and the wiring are absolutely the same.

The Theft Deterrent Module, Passkey Decoder Module or TDM/PDM is under the dash, right side.

-Remove the glove box, Disconnect the wiring from the retainer, Remove the Relay center

-Remove the 3 screws from the relay bracket, Remove the relay center bracket.

-Remove the 2 Module screws, Disconnect the electrical connector and remove the module.

1993 Cadillac 60 Special TDM PDM Location

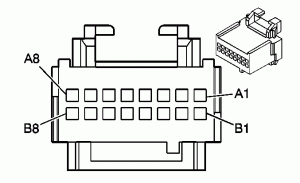

TDM/PDM Connector

If the enclosure of your NEWROCKIES PRO Module is green and blue, please setup the switches as following (if enclosure is black, please submit a request to our support team for correct switch configurations):

Open the NEWROCKIES PRO Module’s cover (this will NOT void the warranty) by removing the 2 screws on the bottom. Inside there are 2 sets of switches.

Set the switches as in the photo here below:

Connect as following:

PRO Module

CAR Wires

RED

Attach to the PNK or PNK/BLK or PPL/WHT at the PDM Connector Pin A2

WHT

Not Used

BLK

Attach to the BLACK with a WHITE stripe at the PDM connector Pin B5

PPL

Attach to the (YEL/BLK or BLK/YEL) at the PDM connector Pin A4

GRN

Attach to the DARK BLUE wire at the TDM connector Pin A3

YEL

Not Used

BRN

Not Used

NOTE: After installing the NEWROCKIES PRO Module, leave the TDM/PDM unplugged as it is not needed anymore

Troubleshooting

In case your car is still not starting after installation of the PRO Full Bypass module, please check the following and perform the recommended actions before contacting our support team:

Make sure connector’s pinout and wiring colors of your car are both matching exactly those of our instructions. If not, please Submit a Request to our support team with details of the pinout and wiring colors in your car.
Is the light on the side of the PRO module turning on? If not check power between RED and BLK wires of the PRO module installed and with the key in the ON position (you can use a power-meter or a light) and Submit a Request to our support team with results of the measurement.
If your instructions do NOT make use of the PPL wire of the PRO Module then skip this step, otherwise, if you use the PPL wire and points (1) and (2) above are correct and your car is not even cranking then make sure the PPL wire of the PRO bypass is connected correctly and the connection is tight. Also try shorting with a loose piece of wire the PPL and BLK of the PRO module.
If car is still not cranking then Submit a Request to our technical support team detailing the tests you have done and the results.
If the car is cranking, but engine doesn’t start or sometimes starts but immediately dies then do the following:
1. If your instructions make use of the GRN wire of the PRO Module, then make sure the GRN wire of the PRO bypass is correctly connected and the connection is tight.
2. Open the PRO module’s cover by removing the 2 screws on the bottom and change switches 7 and 8 of SW1 to [7:ON, 8:OFF] or to [7:OFF, 8:ON]. Make sure the switches 1-6 of SW1 are exactly as indicated in the instructions for your car model/year and if not, then change them accordingly. Try starting the car.

If car is still not starting or if you have any questions or concerns please Submit a Request to our technical support team detailing the tests you have done and the results.

NOTE: when contacting our support team, please always indicate your car’s make, model and year.
